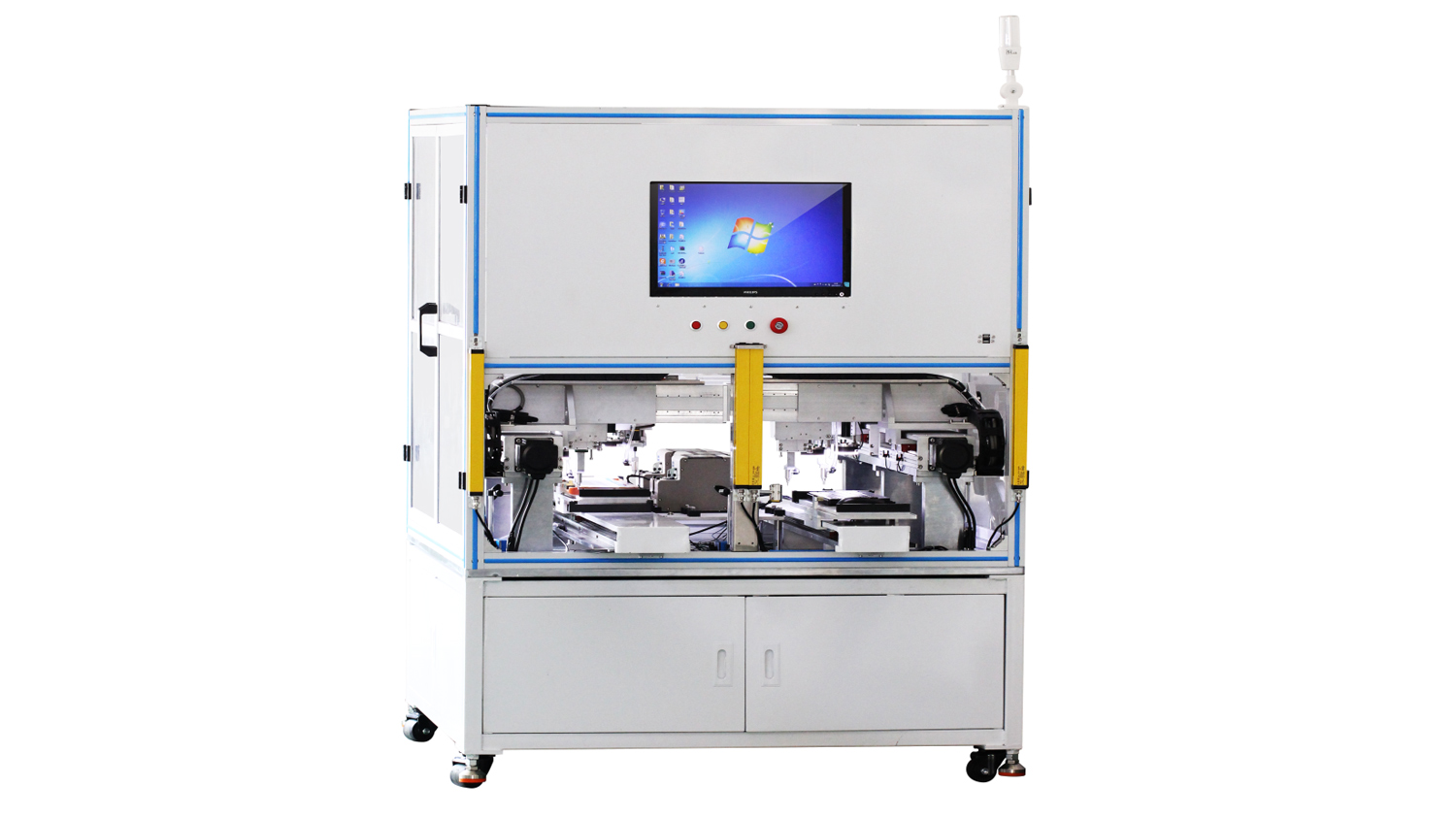

Multi station intelligent screw locking machine JZXCCD-0402

The adsorption type automatic screw tightening machine adopts a combination of coordinate machine and screw arrangement machine. The screw is retrieved from the screw arrangement machine through the coordinate machine, and then the locking process is executed. It has the function of ordinary coordinate type and takes into account the advantages of screw arrangement machine. Its advantage is that one device can be suitable for the vast majority of screws. The arrangement machine track is adjustable, although the efficiency is lower than that of the blowing type, the adsorption type has loose requirements for screw size, especially for some special screws that cannot achieve blowing type feeding, which can still operate stably and have a wider range of applicable screws. The device adopts PC control to store multiple sets of locking schemes, achieving automated production in different products and screws. The operation is simple, and the machine is equipped with four locking mechanisms that operate independently. It can simultaneously lock four types of screws and points, and the bottom mold has the function of loading and unloading operation coordination. Stay at any position to cooperate with the robotic arm and the production line for retrieval and placement.

Product details

Product features:

◆ Atlas electric screwdriver, accurate torque control, intelligent locking product, stable and durable;

The Kangnaishi code reader is high-speed and stable, providing guarantee for product information storage and tracking.

CCD precise and intelligent positioning, accurately correcting errors in the first time. Ensure that each lock payment does not deviate.

◆ HOS feeder, compact and durable, leading the industry;

Aluminum profile die-casting structure, solid, beautiful, and high precision;

◆ Industrial computer operation, simple and practical, with complete functions and efficient use;

High configuration components: closed-loop servo motor, Taiwan Shangyin guide rail, Panasonic Optoelectronics.

Performance characteristics

Structural parameters	Number of operators	onepeople
	Air source	0.3-0.5MPaOil free, dry
	Power Supply	220V 50HZ
	model	Online floor mountedJZXCCD-0402
	Overall dimensions	190012401700（mm）
	weight	450kg
	power	1300W
	Locking shaft	fourindividual
performance parameter	Electric screwdriver model	Atlas electric screwdriver（QMC21-10-HM4)
	Scanning gun	Kangnaishi Code Reader
	Number of workstations	Left and right dual platforms
	efficiency	Each axis is1.5s/Pieces
	Defective rate	2‰
	Material collection method	Vacuum Suction
	speed	X、Y、Z—700、six hundred、600mm/s
	accuracy	/-0.02mm
	Alarm items	Slippery teeth, missed strikes, not locked, automatically corrected,
	Electric screwdriver torque	Adjustable, intelligent control, parameter recording,
	Operation interface	twenty-oneInch display screen
	Coordinate storage capacity	one hundred
	control unit	Industrial computer
	power	Closed-loop stepping
	Transmission mode	Sliding platform module.
	enclosure	Coordinate adjustment, teaching pendant.
